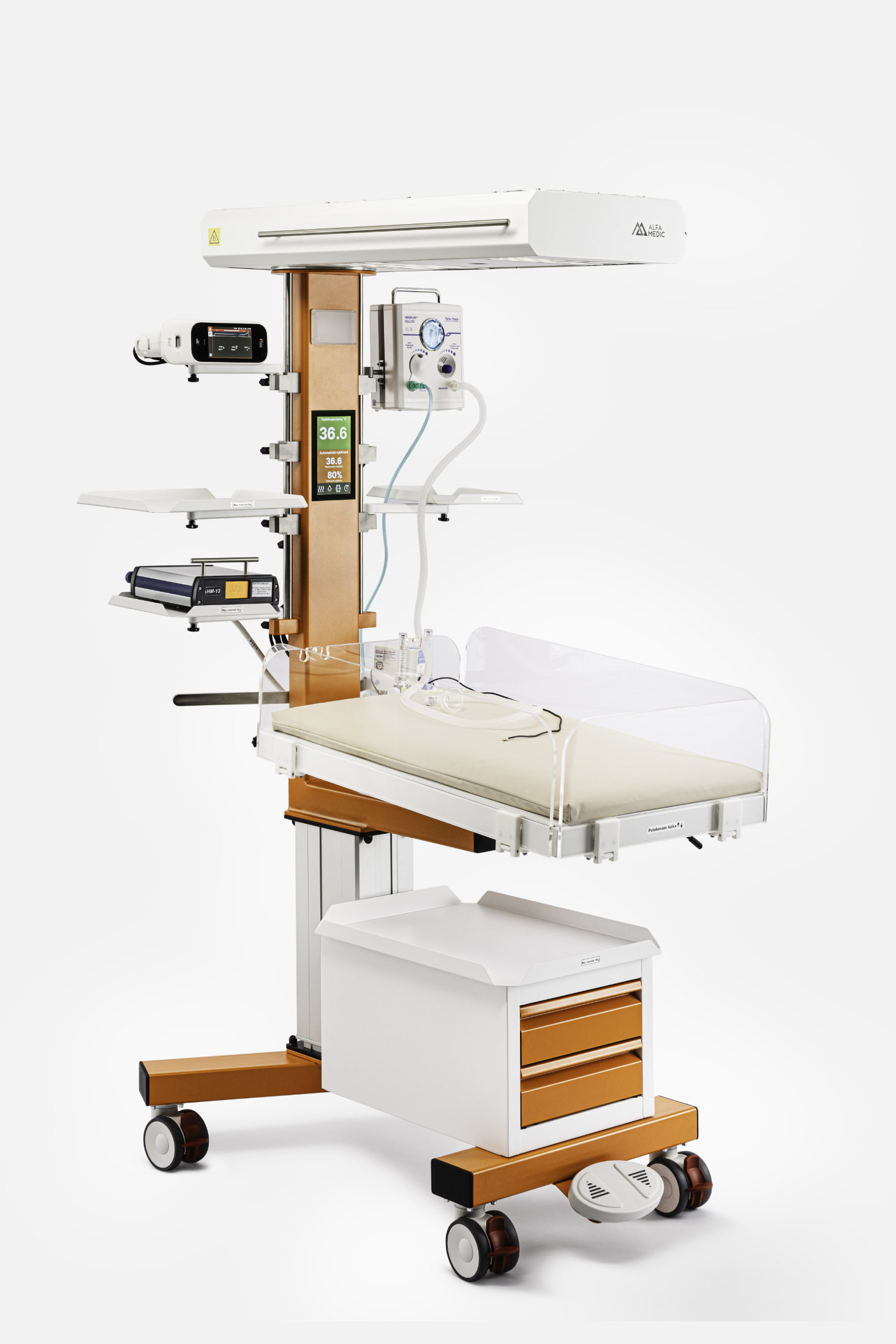

Heated Bed for Newborns and Infants
VL-22
The heated bed for newborns and infants is designed to maintain thermal balance, with the option to treat hyperbilirubinemia in newborns and infants.
It is intended for use in providing therapeutic and nursing care to patients across all departments of standard and intensive care, including surgical specialties, in the following applications:
- Standard care for newborns and infants, including treatment in delivery rooms, operating rooms, and neonatal intensive care units (NICU)
- Stabilization of body temperature in hypothermic newborns and infants
- Administration of infusions and performance of exchange transfusions
- Preoperative and postoperative intensive care in neonatology and pediatric departments
- Care for pathological newborns and infants under controlled ventilation in NICU
- Performing surgical procedures in NICU and pediatric surgery departments
- Treatment of neonatal hyperbilirubinemia using LED phototherapy
The LED phototherapy module emits radiation in the 450–460 nm spectrum at an intensity of 50 μW/cm²/nm to reduce bilirubin concentration in the newborn’s body. The blue-spectrum radiation from the phototherapy module breaks down bilirubin into a non-toxic, water-soluble product that can be more easily eliminated from the newborn’s system.
The LED phototherapy module features long-lasting light sources with a guaranteed efficiency of at least 60,000 operating hours.
Basic device configuration:
Type VL-22
- Mobile stand with swivel double-braked wheels and side locking, featuring a built-in electronic control unit for all operational functions: heating, lighting, APGAR timer, phototherapy, and a set of additional features such as power failure indication, bed tilt, alarms and alerts, intuitive control via touch LCD display, and an operational status light indicator, height adjustment of the patient bed via foot controller
- Electronic temperature servo-regulator + 2 temperature sensors
- Storage container with a fixed shelf under the patient’s bed
- Upper heating module with 90° swivel movement to both sides, equipped with two ceramic heating elements, with the front element optionally switchable for operator comfort
- Built-in LED light source with smooth intensity adjustment for patient bed illumination
- Two electrical sockets on the rear of the stand for connecting optional accessories
- Bed surface size options: 500×800 mm or 650×800 mm
- Smoothly adjustable patient bed in Trendelenburg/Reverse Trendelenburg positions with graphical indication and hinged sides
- Mattress options per customer request: non-heated / heated mat HM-13
- 4 pcs hinges
- 3 pcs height-adjustable, positionable storage shelves
- 1 pcs infusion holder
- Clamping rail system
- Color combinations available: white, blue, green, orange

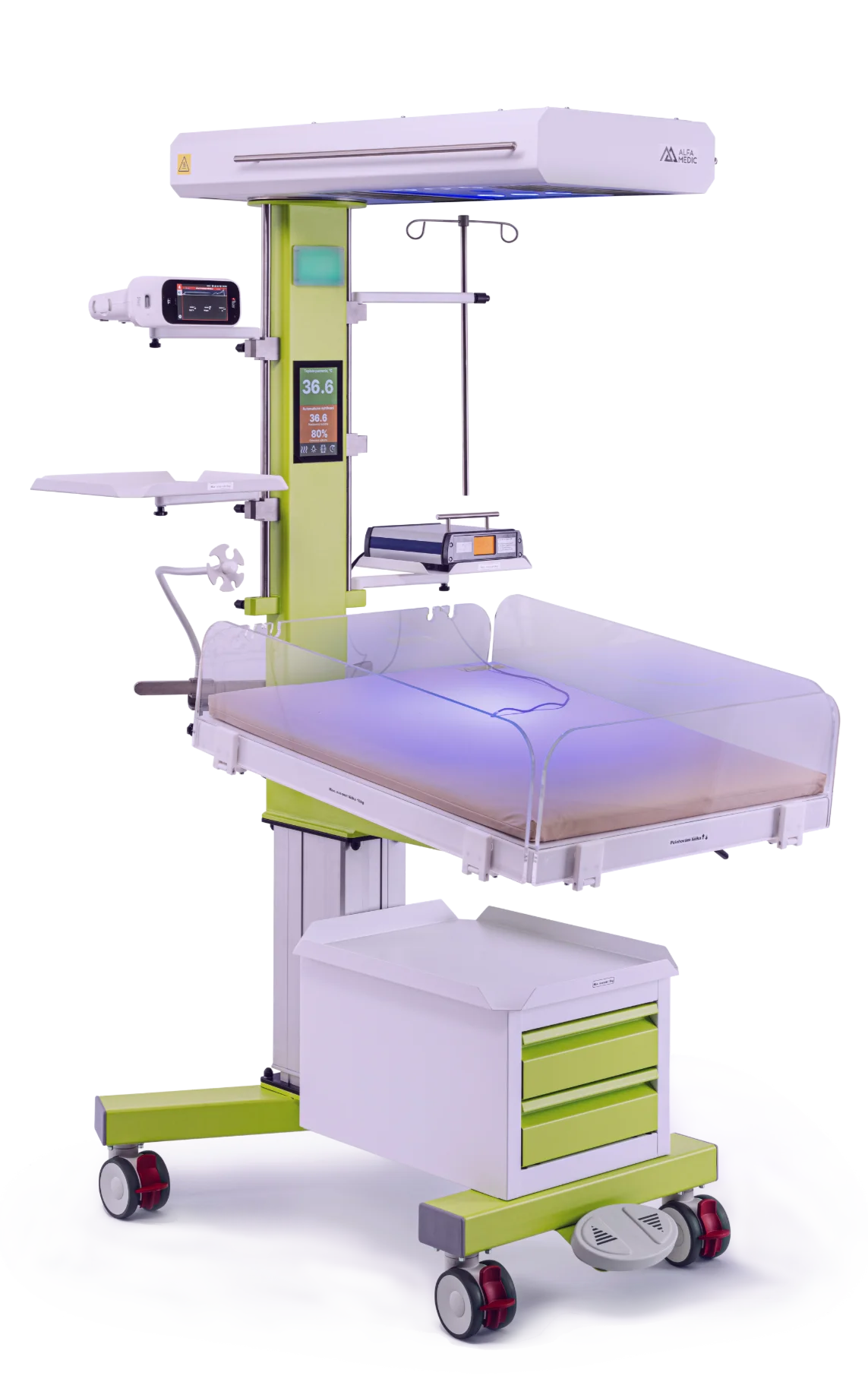

Type VL-22F
- Integrated LED phototherapy module
Accessories (Optional Equipment) for Heated Bed
- Heated Pad HM-13 – bottom heating
The combination of the bed and the HM-13 heated pad ensures optimal patient warming. As an independent device, it can also be used separately.
- Spot examination light on flexible Arm
LED spotlight 12V / 10W / 10° illuminates every detail precisely at the targeted location.
- Plastic oxygen micro-tent (Diameter 500 mm)
Using the oxygen micro-tent, we simulate the conditions of a closed incubator
- Shelf and bracket hinges including specific fixings
- O₂ Cylinder Holder
- Suction Device with Adjustable Vacuum Control
- Central Oxygen Distribution System with 4 Outlets
- Manually Operated T-Resuscitator with O₂/Air Mixer and 2 Outlets for Twin Treatment
Eye protection must always be used when applying phototherapy. MDM safety glasses are very suitable.
Technical parameters MDM safety glasses:
- Protective glasses small – circumference: 24 cm
- Protective glasses medium – circumference: 30 cm
Technical parameters of the heated bed:
- Device protection class: I
- Device risk class: IIb
- Supply voltage: 230/50 V/Hz
- Power consumption: max. 900 W
- Heating element power: 2 x 400/230 W/V
- LED bed lighting: brightness control, 4000K / 10 VA
- Spot LED lighting: 4000K / 10 VA / 10°
- Bed position adjustment with LCD graphic display: +/- 15°
- Temperature control – modes: PREHEAT / AUTO / MANUAL
- Adjustable temperature control range: 30–37 C° (po 0,1 C°)
- Height adjustment range: 300 mm
- Patient bed dimensions: 500 x 800 mm
650 x 800 mm - Overall dimensions (H x W x D): 1900 x 700 x 1050 mm
- Weight depending on variant: approx. 90 kg
